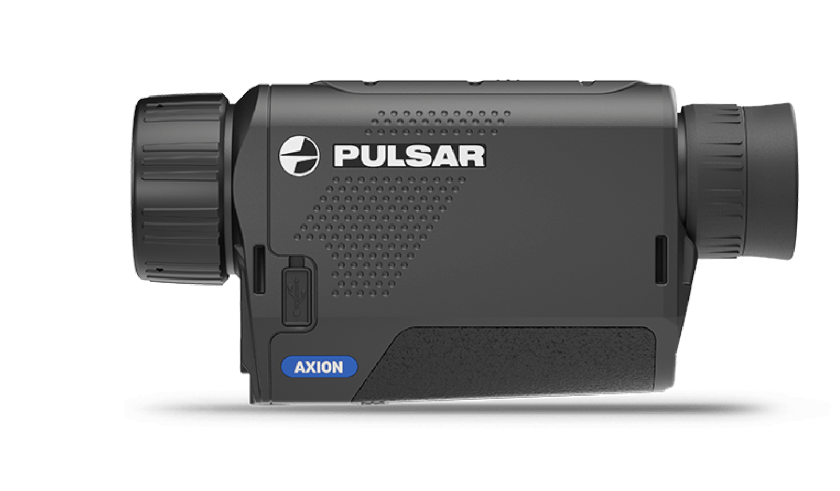

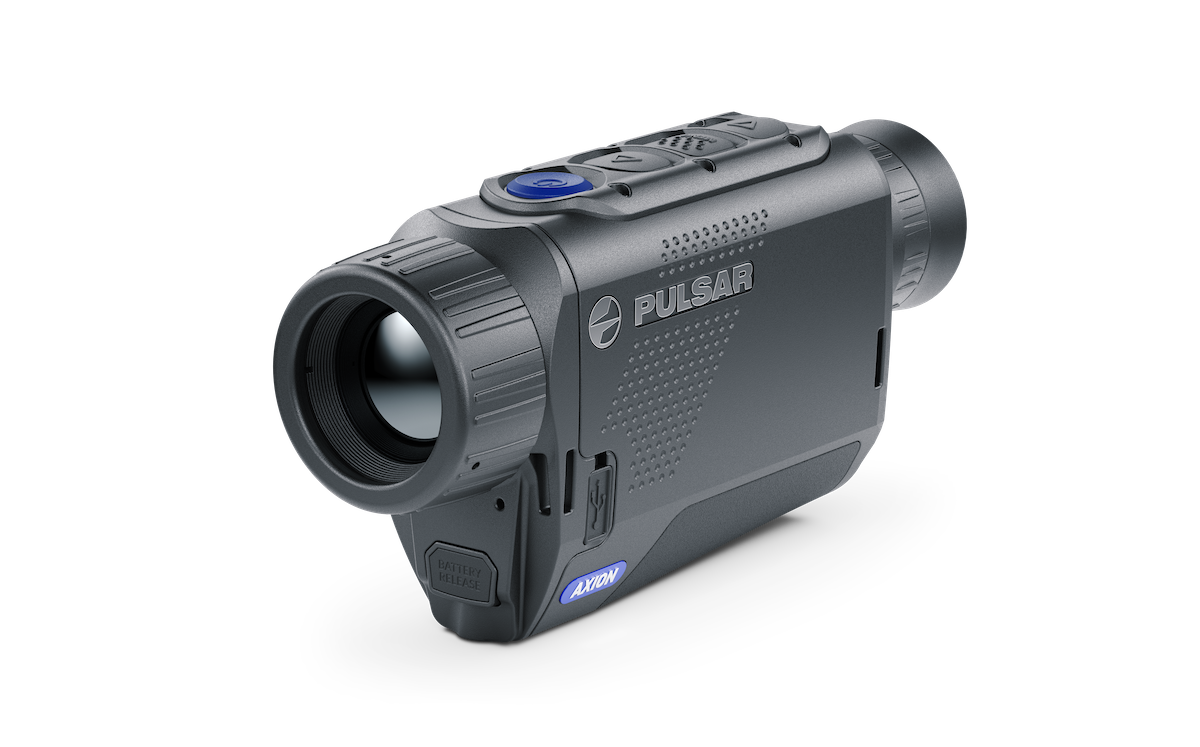

Pulsar Axion XM30F

Compact, lightweight magnesium alloy body, Lynred 12µ sensor. Great performance and value-for-money.

The affordable Pulsar Axion XM30F is pure European class

Nothing compares to the looks and feel of a Pulsar Axion. Its solid magnesium alloy body is compact, lightweight and fully waterproof. It is easy to use and built to last.


  • Lynred 320×240/12µ sensor
  • F30/f1.2 precision ground germanium objective lens
  • 3x-12x magnification
  • FoV 7.8˚ vertical @ 3x magnification
  • Detection range ≥1300 metres
  • Strong and durable magnesium alloy body
  • Waterproof to a depth on one metre (IPx7)
  • Quick-change APS3 battery for 5+ hours use on one charge
  • Video recording and streaming
  • AMOLED display
  • Stream Vision 2
  • Weighs only 250 grams
  • 3 Year warranty (1 year battery warranty)

When you own an Axion XM30F, you will enjoy the benefits of a thermal imager with Pulsar’s reputation for quality, innovation, performance and customer after-sales service.


New Axions feature a 3-level sensitivity amplification function that is controllable at the press of a button. There is also a noise filtration function that reduces noise in flat areas and enhances areas of contrast, such as warm objects. These new features work independently or together, proving the user with new image control settings that are additional to Pulsar’s excellent brightness and contrast control.

Due to the terms of our international license ‘Dual-use’ and must not be exported outside of New Zealand.


StreamVision app

Stream Vision 2 integration with IOS/Android and firmware update

Built in Wi-Fi module provides connectivity of thermal imager with Android or iOS smartphones or tablets. The smartphone and thermal imager combination offers a set of unique features such as direct image streaming, downloading and sharing recorded files, firmware update, remote control, ballistic calculator, motion sensor and free cloud storage for your images and videos.



Axion XM30F

320×240-12µ Sensor

Objective lens F30/f1.2

3x-12x Magnification (4x zoom)

Field-of-view 7.8° (3x)

APS3 Battery

Detection range ≥1300 m
