Pulsar Merger LRF XQ / XP / XL

Merging technology with classic design.
Now available with a Lynred 1024×768 sensor.

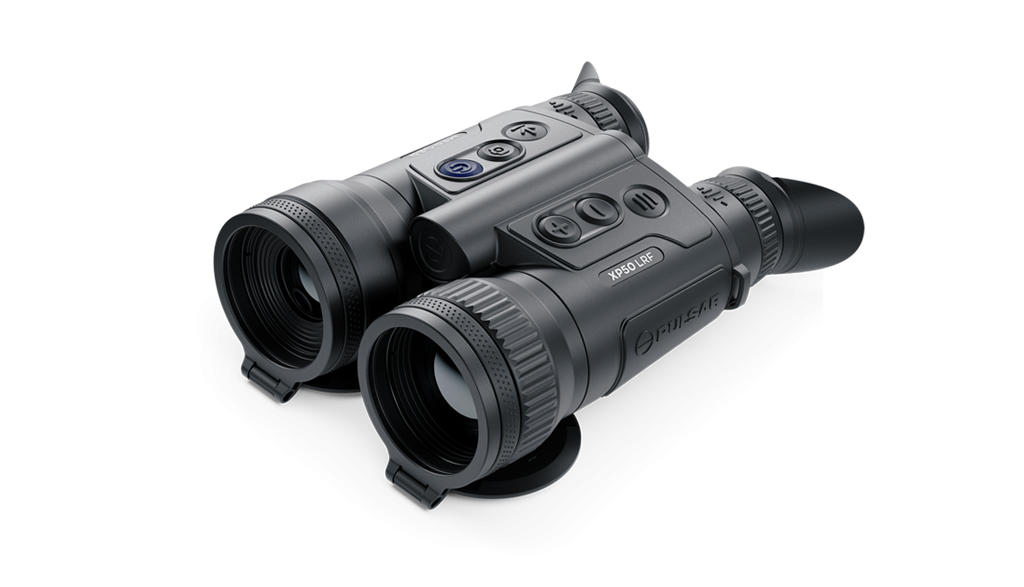

Pulsar Merger LRF XP50

Pulsar Merger LRF redefines thermal imaging

Built to appeal to those who appreciate fine European optics, the Pulsar Merger LRF not only looks great but delivers sensational performance, robustness and reliability. It simply oozes quality and enhanced viewing comfort.

It is equally suited to the rigorous demands of professional users such as law enforcement, search and rescue, Coastguard and professional pest management when robustness is a paramount requirement.

The new Merger LRF XL50 is the first release in Pulsar’s HD 1024×768 thermal imaging series.

The Pulsar Merger LRF is available in a choice of three models:

• Merger LRF XL50- Lynred 1024×768/12µm/<40mK and /f1.0 50mm lens.
Outstanding resolution and zooming capability for fine image detail.

• Merger LRF XP50- Lynred 640×480/17µm/<25mK and f1.0 50mm lens.
Proven favourite amongst keen hunters and professionals with its image quality and sensitivity.

• Merger LRF XQ35- Lynred 384×288/17µm/<25mK and f1.0 35mm lens (available November 2023).
Lower purchase price while mainting all the great Merger features and performance.



Common features:

  • Made in Europe by Pulsar
  • Lynred professional sensors
  • 1000m single channel laser rangefinder
  • Tough magnesium alloy body
  • IPx7 waterproof (immersed in 1 metre of water for 30 minutes)
  • Quick-change battery with internal back-up for ≤10 hours use
  • Video recording and streaming
  • Stream Vision 2 compatible.

Dual-use goods (military/civilian) cannot be exported outside of New Zealand.

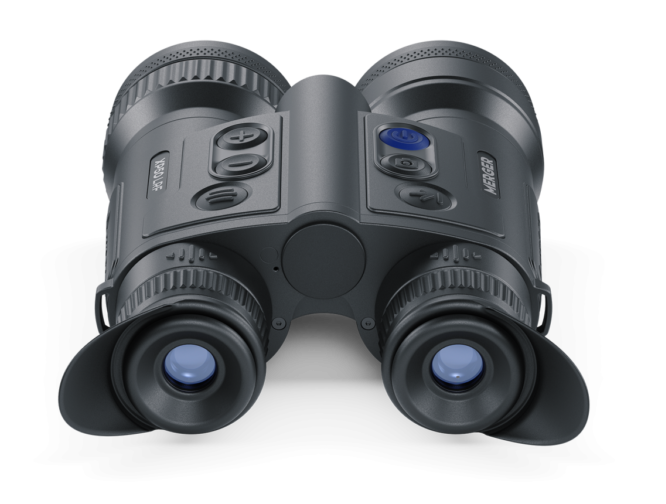

Pulsar Merger LRF XP50

Merger LRF XL50

The new Merger XL50 is fitted with a Lynred sensor with a huge 1024×768/12µm pixel spatial resolution. The image can be magnifiied more while retaining a high quality image. An increased field-of-view is another advantage.

Merger LRF XP50

This is Pulsar’s original Merger LRF, enjoyed by keen hunters and professionals alike. Its Lynred 640×480/17µm sensor delivers proven performance. New Zealand Police HQ have purchased multiple units for front line officers.

Merger LRF XQ35

The Merger LRF XQ35 benefits from the same features and build quality as its higher performance stablemates but at a lower investment cost. Its 384×288/17µm/<25mK sensor and 35mm f1.0 lens produces a clear image and a very respectable field-of-view.

Sensor comparison with  pixels of the same pitch

Relative sensor spatial resolution with pixels of the same pitch. Though the 12µm XL sensor has a physical size slightly larger than the 17µm XP sensor, it has 255% more pixels.

StreamVision app

Stream Vision 2 integration with IOS/Android and firmware update

Built in Wi-Fi module provides connectivity of thermal imager with Android or iOS smartphones or tablets. The smartphone and thermal imager combination offers a set of unique features such as direct image streaming, downloading and sharing recorded files, firmware update, remote control, ballistic calculator, motion sensor.



Models

Merger LRF XQ35

Lynred 384×288-17µ Sensor

NETD <25mK

F35mm/f1.0 objective lens

3x – 12x Magnification

10.7° (3x) Field of view

Detection range 1350m

1000m single channel laser rangefinder

APS Quick-change battery with internal back-up

Size mm 181 x 133 x 68

Weight with battery 830 grams

Merger LRF XP50

Lynred 640×480-17µ Sensor

NETD <25mK

F50mm/f1.0 objective lens

2.5x – 20x Magnification

12.4° (2.5x) Field of view

Detection range 1800m

1000m single channel laser rangefinder

APS Quick-change battery with internal back-up

Size mm 197 x 140 x 72

Weight with battery 950 grams

Merger LRF XL50

Lynred 1020×768-12µ Sensor

NETD <40mK

F50mm/f1.0 objective lens

2.5x – 20x Magnification

14° (2.5x) Field of view

Detection range 2300m

1000m single channel laser rangefinder

APS Quick-change battery with internal back-up

Size mm 196 x 143 x 76

Weight with battery 950 grams
