Pulsar Thermion Duo dt

DXP50 / DXP55

Pulsar Thermion Duo multi-spectral riflesight

THERMAL AND COLOUR IMAGERY IN A SINGLE RIFLESCOPE

The Thermion Duo produces both a thermal and colour image in a single riflescope. Its thermal capability is identical to the highly popular Pulsar Thermion XP50 Pro, but the addition of a colour channel is ideal for daylight hunting, where optimum target recognition, especially at longer ranges is valuable. Combining colour with thermal provides excellent performance in all weather conditions, though foliage and at night.

Unlike a fusion device, the Thermion Duo presents both image separately, ensuring that each image is clear. The image can be presented as a full screen colour, full screen thermal, full screen colour with thermal picture-in-picture or full screen thermal with colour picture-in-picture. This is easily toggled by pressing a single burrow located on the eyepiece.

Pulsar Thermion Duo
Pulsar thermion Duo DXP50 / DXP55

Available in two models

Thermion Duo DXP50





 Pulsar Thermion Duo DXP50

  • Thermal specification
    • Sensor Lynred 640×480 / 17µm / 50Hz
    • Sensitivity NETD <25mK
    • Objective lens F50 / f1.0 precision Germanium
    • Magnification 2x-16x (8x zoom)
    • Field-of-view 12.4° / 21.8m @ 100m (2x)
    • Detection range +/- 1800m

    Colour specification

    • Sensor 4k 3840 x 2160
    • Objective lens F17 / f4.34 focus free
    • Magnification 2x-32x (16x zoom)
    • Field-of-view 12.4° / 21.8m @ 100m (2x)

Thermion Duo DXP55



Pulsar Thermion DXP55

Thermal specification

  • Sensor Lynred 640×480 / 17µm / 50Hz
  • Sensitivity NETD <25mK
  • Objective lens F50 / f1.0 precision Germanium
  • Magnification 2x-16x (8x zoom)
  • Field-of-view 12.4° / 21.8m @ 100m (2x)
  • Detection range +/- 1800m

Colour specification

  • Sensor 4k 3840 x 2160
  • Objective lens F35 / f4.32 focus free
  • Magnification 4x-32x (8x zoom)
  • Field-of-view 6.1° / 10.6m @ 100m (4x)

Common features and benefits

Tough 30mm tube for easy mounting

Each Thermion Duo can be easily mounted to a variety of firearms in the same way as a classic daylight riflescope. It is waterproof to IPx7 and capable of withstanding heavy recoil, such as .375H&H, 9×63 and 12 gauge rifled slug.

Stream Vision 2 integration with IOS/Android and firmware update



Pulsar Stream Vision 2

Built in Wi-Fi module provides connectivity of thermal imager with Android or iOS smartphones or tablets. The smartphone and thermal imager combination offers a set of unique features such as direct image streaming, downloading and sharing recorded files, firmware update and many other.

Learn more about Stream Vision



Stream Vision 2 integration with IOS/Android and firmware update

Built in Wi-Fi module provides connectivity of thermal imager with Android or iOS smartphones or tablets. The smartphone and thermal imager combination offers a set of unique features such as direct image streaming, downloading and sharing recorded files, firmware update and many other.

Learn more about Stream Vision 1&2

Common specifications

  • Made in Europe by Pulsar
  • Quick-change APS 5T 4900mAh battery for ≤9 hours use
  • HD AMOLED display
  • Withstands 6000J recoil energy (.375H&H, 9.3×64, 12 gauge slug etc)
  • Waterproof IPx7 (immersed in 1 metre of water for 30 mins)
  • Multi-point Picatinny prism mount for ease of mounting
  • Stream Vision 2
  • Size mm 330x57x67
  • Weight 700 grams

Accessories

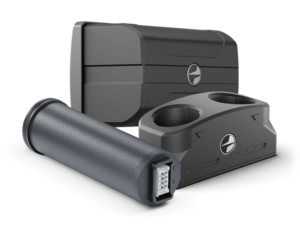

Pulsar batteries

Batteries and chargers
