Pulsar Telos range
Latest generation thermal imaging with unique and outstanding features.

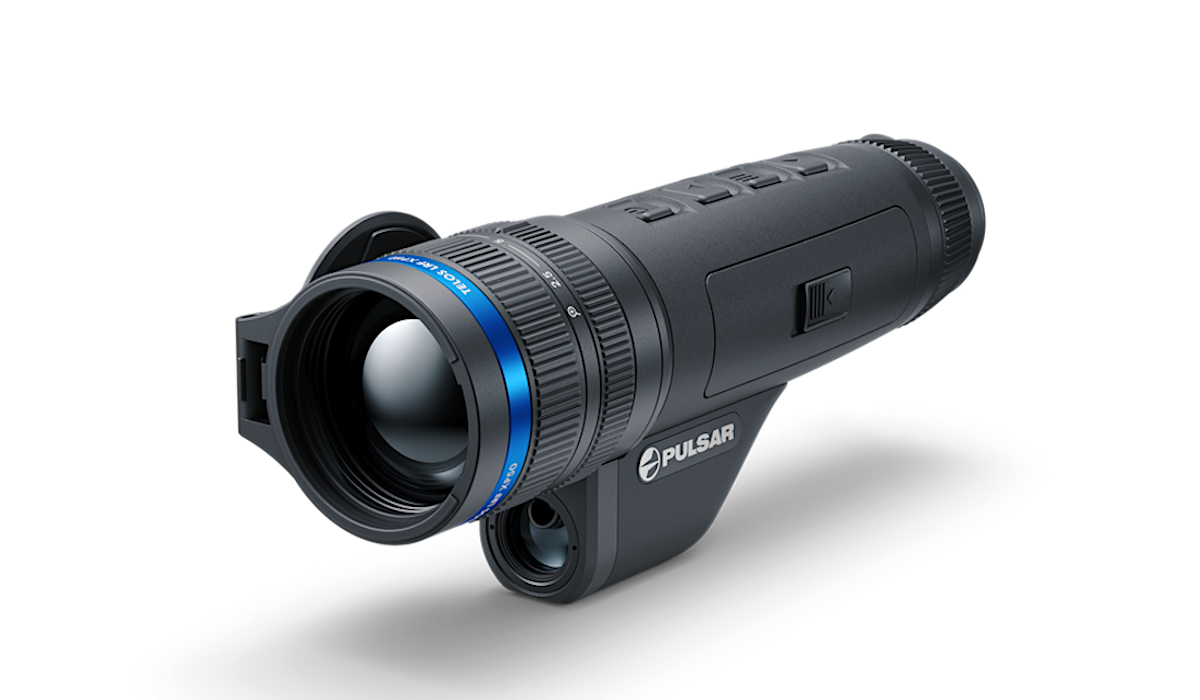

Pulsar Telos and Telos LRF thermal monocular offers the very best features and performance.
The Pulsar Telos is the first upgradeable thermal imager, enabling the device to keep pace with new technology and expand hardware functionality.
Pulsar worked in close collaboration with Lynred to achieve an unprecedented sensitivity of <18mK with the XP50, placing it in the realm of cryo-cooled LWIR thermal cameras costing tens of thousands of dollars more.
Its ergonomic design is comfortable to hold and use with either hand. A unique manual zoom ring simplifies zooming in the same way as a DSLR camera lens.
The Telos features the latest technology heat dissipating composite polymeric housing for lightness, strength and low internal heat retention.
Performance and functionality aside, the new Pulsar Telos oozes quality, appeal and ruggedness, heralding a new era in the development of advanced thermal imaging systems.
The Pulsar Telos is available with or without an integral laser rangefinder, in a choice of four specifications:
Telos XL50 $9,199 / LRF XL50 $9,899
Lynred 1024 x 768 / 12µm sensor
50mm f1.0 lens
Telos XG50 $5,799 / LRF XG50 $6,399
Lynred 640 x 480 / 12µm sensor
50mm f1.0 lens
Telos XP50 $6,799 / LRF XP50 $7,499
Lynred 640 x 480 / 17µm sensor
50mm f1.0 lens
Telos XQ35 $3,999 / LRF XQ35 $4,499
Lynred 384 x 288 / 17µm sensor
35mm f1.0 lens
Due to the terms of our international license ‘Dual-use’ and must not be exported outside of New Zealand.
Common features
• Made in Europe by Pulsar
• Precision ground f1.0 gemanium lens
• Manual zoom ring
• HD 1024×768 AMOLED display
• Three stage sensor amplification
• Composite Polymeric housing
• Upgradeable hardware
• Fully waterproof to IPX7 (IEC60529)
• Quick-change 6400mAh IPS7i Li-ion Battery (≤8.5 hours use)
• Video and still recording
• WiFi Streaming via StreamVision 2
• Firmware updating via StreamVision 2
Stream Vision 2 integration with IOS/Android and firmware update
Built in Wi-Fi module provides connectivity of thermal imager with Android or iOS smartphones or tablets. The smartphone and thermal imager combination offers a set of unique features such as direct image streaming, downloading and sharing recorded files, firmware update, remote control, ballistic calculator, motion sensor.
Telos XL50 / LRF XL50
-
- Lynred sensor 1024×768 / 12µm / 50Hz
- NETD <40mK
- Lens F50mm – f 1.0
- Magnification 2.5x – 20x
- Field-of-View 14˚ / 24.6m @ 100m
- 1000m single-channel laser rangefinder (Telos LRF)
- LPS7i 6400mA quick-change battery with wireless charging and inbuilt USB-C socket
- Weight 680 grams (with the LPS7i battery)
Telos XP50 / LRF XP50
-
- Lynred sensor 640×480 / 17µm / 50Hz
- NETD <18mK
- Lens F50mm – f 1.0
- Magnification 2.5x – 10x
- Field-of-View 12.4˚ / 21.8m @ 100m
- 1000m single-channel laser rangefinder (Telos LRF)
- LPS7i 6400mA quick-change battery with wireless charging and inbuilt USB-C socket
- Weight 670 grams (with the LPS7i battery)
Telos XG50 / LRF XG50
-
- Lynred sensor 640×480 / 12µm / 50Hz
- NETD <40mK
- Lens F50mm – f 1.0
- Magnification 3.5x – 14x
- Field-of-View 8.6˚ / 15.4m @ 100m
- 1000m single-channel laser rangefinder (Telos LRF)
- LPS7i 6400mA quick-change battery with wireless charging and inbuilt USB-C socket
- Weight 660 grams (with the LPS7i battery)
Telos XQ35 / LRF XQ35
-
- Lynred sensor 384×288 / 17µm / 50Hz
- NETD <25mK
- Lens F35mm – f 1.0
- Magnification 3x – 12x
- Field-of-View 10.7˚ / 18.7m @ 100m
- 1000m single-channel laser rangefinder (Telos LRF)
- LPS7i 6400mA quick-change battery with wireless charging and inbuilt USB-C socket
- Weight 570 grams (with the LPS7i battery)
