Pulsar Trail 3 LRF
Compact Thermal Riflescope
The new Pulsar Trail 3 is the latest iteration of the Trail series which has a fine reputation amongst professional pest controllers.

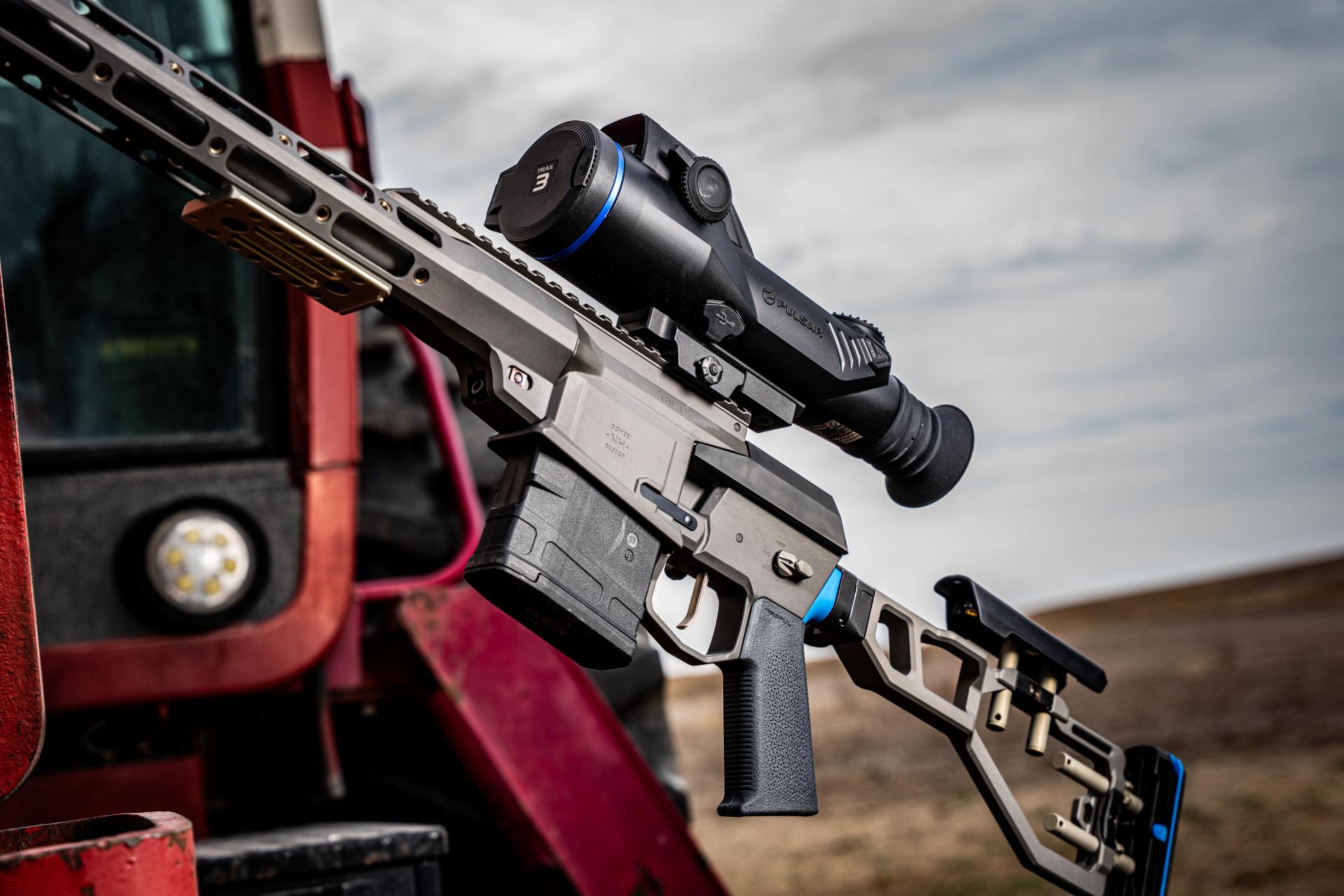

Pulsar Trail 3 LRF thermal riflescope
The Trail series rapidly became a firm favourite amongst professional pest controllers upon its release in 2017. The Trail 3 builds upon this fine reputation with higher resolution and features that aid shot placement for higher productivity.
Incorporating a powerful 1200m laser laser rangefinder and Pulsar Ballistics, accurate shot placement is achieved by way of a point-of-impact marker on the reticle.
The Trail 3 LRF is supplied with a quick-detachable Weaver SQD double point mount that provides a greater level of reliability under harsh conditions and ideal for switching between rifles. Other mounts available as optional extras.
Trail 3 LRF XQ50
More info
The Pulsar Trail 3 LRF features a Lynred 384×288 sensor that delivers exceptional value-for-money for pest control at short to medium distance. The 17µm sensor has a low working NETD that performs well is mist, rain and light foliage.
Its 35mm f1.0 precision germanium lens produces an image with a good field-of-view and image detail.
The Pulsar Talion is supplied with a Pulsar Quick-Detachable Short-Mount that enables the scope to be removed and replaced without change in point-of-impact on a M-STD-1913 Picatinny rail or compatible Weaver rail.
Sensor
- Lynred Pico384S
- 384×288 / 17µm / 50Hz
- System NETD <15mK
- Accreditation: MIL-STD810 / MIL-STD883
Optics
- F50 – f1.0 precision germanium lenses
- 3.5x46x magnification
- Field-of-view 7.5˚ / 13.1m @ 100m
- Spatial Resolution (IFOV) 1.17’ MOA / 34.1mm @ 100m
Trail 3 LRF XR50
More info
The Pulsar Trail 3 XR50 features Lynred’s latest ATTO640 sensor that delivers fine image resolution, enhanced sensitivity and proven performance.
Sensor
- Lynred ATTO640D-04
- 640×480 / 12µm / 50Hz
- System NETD <18mK
Optics
- F50 – f1.0 precision lenses
- 3x – 24x magnification
- Field-of-view 8.8˚ / 15.4m @ 100m
- Spatial Resolution (IFOV) 0.82’ MOA / 20mm @ 100m
Common features
- Quick-change high capacity LPS7i battery design for up to 12 hours operation time.
- Pulsar Stream Vision Ballistics links with the rangefinder to indicate projectile drop.
- Supplied with quick-detachable prism mount with precise lock-up for easy removal while maintaining point-of-impact.
- Lynred sensor, precision ground Germanium optics, advanced image processing and a HD AMOLED display produce excellent and stable image quality.
- Talions have 10 shooting profile memories that can be used for different loads or for swapping over to different rifles. Each profile can save up to 10 distances for precise shot-placement. There are 10 reticle designs, including ballistic (First-Focal-Plane) that are adjustable for colour and brightness.
- Fully waterproof (IPX7) and shock resistant to 6000J recoil energy.
- Lightweight and compact.
Common specifications
- Made in Europe by Pulsar
- 1200m laser rangefinder
- Precise shot placement with Pulsar Ballistic App.
- 1920×1080 High-Definition AMOLED display
- 6000J recoil resistance is suitable for heavy recoiling rifles and 12g rifled slug
- Three stage sensor amplification
- Magnesium alloy housing
- Fully waterproof to IPX7 (IEC60529)
- Quick-change 6400mAh APS5T Li-ion battery
- External power 5v/9v USB-C
- Weight 700 grams with battery
- Size 271x86x71mm
- Video and still recording
- WiFi Streaming via StreamVision 2
- Updatable firmware
- New Zealand authorised Pulsar products carry a 3 year warranty (1 year battery warranty) and access to repair and servicing.
LPS7i battery pack
Pulsar Trail 3’s are supplied with one LPS7i smart Li-ion battery that can be charges directly with an USB-C charge lead (supplied), in the scope or on a wireless charger. Additional batteries available.
Pulsar batteries are made in Europe to the highest standards for reliable and longevity. The batteries are fitted with smart chips that control charge and discharge for safety and optimum performance.
LPS7i Battery
Capacity: 6.4 Ah.
Also compatible with Pulsar Telos thermal monocular.
